Automatic Spring separator RTS-200
1. RTS-200 can be applied in disentangling small type of spiral spring one by one by means of
centrifuge spin.
2. The appropriate range of spiral springs: outside diameter: 1~20mm
free length: 2~20mm
wire diameter: 0.45~1.5mm
3. Instruction:
a. Make sure to use voltage specification of 110/230V to turn on the machine;
b. Adjust the outlet gate of the springs;
c. Place an aluminum tray under the gate to hold the separated springs;
d. Check if the turnplate inside is in high speed operation;
e. Open the cap and put in the entangled springs (please do not put beyond its capacity);
f. Finished springs will spray out onto the aluminum tray under the outlet gate;
g. The most appropriate users are assembly line workers.
4. Please adapt the outlet gate (refer to the scale on the gate) to the outside diameter of the springs. The gate should be slightly larger than the springs.
5. Please try the device in a small amount before in a large quantity.
* If there are entangled springs on the tray do not separate, push the outlet gate to narrow the exit.
* If the entangled springs spray out beyond 10 seconds, pull out the outlet gate to enlarge the exit.

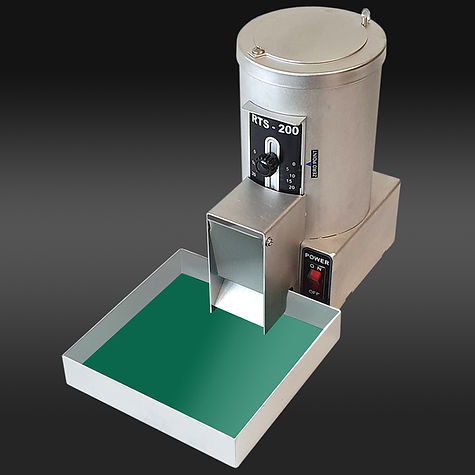

EZMRO RTS-200 Automatic Spring Separator
The RTS-200 is a compact spring separating machine designed to reduce the time and effort required to manually untangle small coil springs.
When multiple springs become tangled together, the RTS-200 uses rotational movement to separate them and discharge the individual springs through the outlet. The separated springs can then be collected on a tray and easily picked up by assembly workers.
This makes the RTS-200 particularly useful for manufacturing, component assembly and production environments where large quantities of small springs need to be handled efficiently.
Its compact design allows the unit to be installed directly beside an assembly workstation, helping reduce repetitive manual work and improve overall productivity.
Model Name: (ezmro Made in Korea) RTS-200
Voltage: 220V

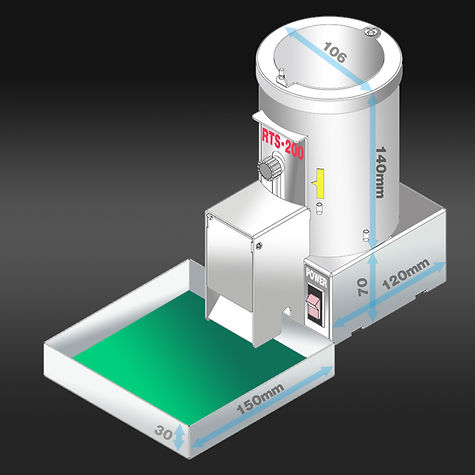

Size: 130㎜x140㎜x210㎜(WxHxD)106Φ
Weight: 3.44kg
